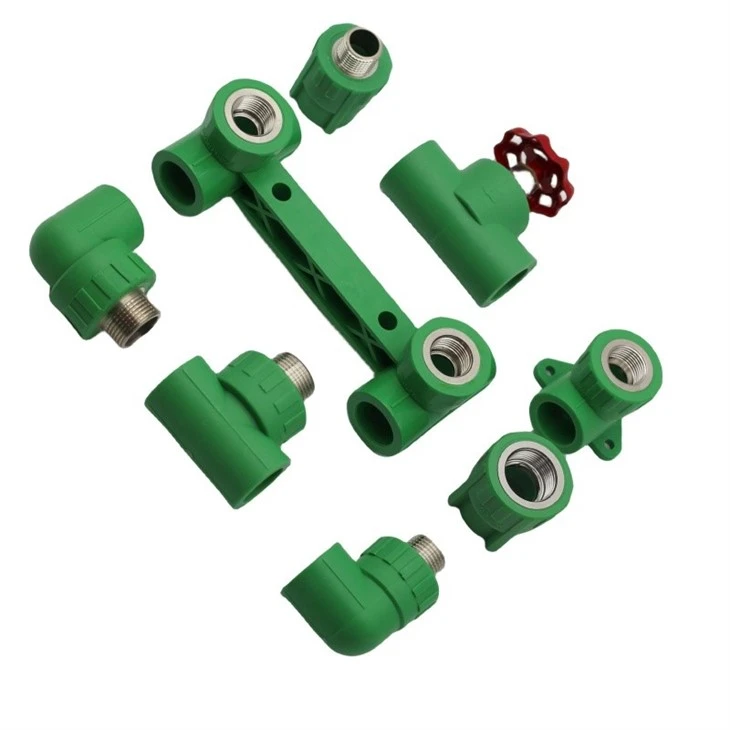

PPR Male Thread Socket

PPR male thread sockets are cylindrical fittings with male threads that allow them to connect with the female threads on PPR pipes, elbows, tees, and other fittings. One of the key components of any PPR piping system are the PPR male thread sockets or PPR female thread sockets which connect pipes and fittings together. The sockets have a tapering design, with the opening slightly larger than the base.

Sockets are always secured using PPR thread sealant tape or liquid sealant to prevent leaks. The materials used for PPR male sockets include brass, stainless steel, and bronze. Brass is the most common. Stainless steel sockets provide excellent corrosion resistance while bronze offers high strength.

There are two main types of PPR male thread sockets used in piping systems:

Straight Sockets

Straight PPR male sockets feature threads on the interior and a straight, non-tapered exterior. They are designed to connect two sections of PPR pipe together in a straight run. The threads on the interior of the socket match the threading on the exterior of PPR pipes.

Straight sockets are available in a wide range of sizes to match different pipe diameters. They provide a smooth, uninterrupted interior flow path when connecting pipes. This makes them ideal for long straight runs with minimal bends or elbows required.

Elbow Sockets

Elbow PPR male sockets have threads on the interior and an angled, elbow-shaped exterior. The angled design allows them to connect pipes together at a 90 degree angle. The elbow shape provides a smooth bend in the piping run.

Like straight sockets, elbow sockets have sized threads to match different PPR pipe diameters. They are essential for creating directional changes in piping layouts. Elbow sockets come in a range of angled configurations besides 90 degrees, such as 45 degrees or 60 degrees.

PPR pipes need to be interlocked between threads when connecting, so that the pipe has a certain tightness. The distance of the thread is called pitch, which is one of the main parameters affecting the tightness of the pipe connection. The common pitch standards for plumbing fittings are mainly American and European standards. Among them, the American standard is expressed by the number of teeth, and the European standard is expressed by the number of threads per inch.

American standard

The commonly used pipe pitch specifications in the United States standard are NPT and NPS. Among them, NPT full name of National Pipe Thread Tapered, is the national standard pipe thread taper thread; The full name of NPS is National Pipe Straight, which is the national standard pipe thread diameter thread.
In the NPT thread specification, the common number of pipe thread teeth is 3/4, 1, 2, etc. In the NPS thread specification, the common number of pipe thread teeth is 1/8, 1/4, 3/8, 1/2, etc.

European standard

The commonly used pitch specifications of pipe fittings in European standards are G, R, Rp, BSP, etc. Where, G represents cylindrical pipe thread; R stands for taper pipe thread; Rp indicates the internal thread, which is required to adapt to the external thread; BSP stands for inch cylindrical pipe thread.
In the European standard, the commonly used pipe thread specifications are G1/2, R1/2, Rp1/2 and so on.

The selection of suitable PPR Male Thread Socket specifications requires comprehensive consideration of pipe system design requirements, pipe size and type, material and quality, and connection methods. Through careful analysis and evaluation of these factors, we can choose the PPR Male Thread Socket that meets the requirements to ensure the safe, stable and efficient operation of the pipeline system.

As an innovative manufacturer of high-performance plumbing products, Zhuji Primy Pipe Co., Ltd. offers a full line of PPR pipes and fittings crafted to deliver strength, ease of use and an attractive appearance.

Working from a complete plumbing system, we map out each stage of the process from initial inquiry to final sale and dispatch. we focus on understanding each client's unique needs and offer customized solutions to ensure satisfaction from all our clients.
