PERT-AL-PERT Pipe

Primy Pipe Company:Your Professional PERT-AL-PERT Pipe Manufacturer!


For 15 years, Primy Pipe Company has been manufacturing and deverloping PPR pipe & fitting, PEX/PERT pipe & fitting, PEX-AL-PEX pipe & fitting and piping tools. Our company has four workshops and a large warehouse with an area of more than 10000 square meters.Production capacity reaches 100 containers of pipes per year and 100 tons of fittings per month.





Why Choose Us

Our Service

We focus on understanding each client's unique needs and offer customized solutions to ensure satisfaction from all clients.

Wide Range of Applications

Our products are widely used in the fields of Residential and commercial water supply, Underfloor heating system, Natural gas transmission, Compressed air lines, etc.

High Quality Equipment

We deliver at mass volumes thanks to the efficiency of more than 100 employees working on 12 pipe production lines (4 lines for PPR pipe, 3 lines for Overlapped Ultrasonice welding PEX-AL-PEX pipe, 3 lines for butt-welded.



Cutting-edge technology

We constantly invest in the latest technology and machinery to ensure that our manufacturing process is efficient and precise. By staying up-to-date with advancements in the industry, we can deliver pipes that meet the highest standards of quality and performance.



Specification



Material

PERT and Aluminum

Size

16x2.0mm, 18x2.0mm, 20x2.0mm, 25x2.5mm, 26x3.0mm, 32x3.0mm

Working Pressure

1.0 MPa (10 bars)

Working Temperature

-40℃≤T≤95℃

Welding type

Overlap-Welded or butt-welding

Color

White, blue, yellow, orange and black

Applications

Cold water supply, hot water supply, gas supply and undefloor heating

Packing

Export package or as customer's request



Advantages of PERT-AL-PERT Pipe


Flexibility
One of the key advantages of PERT-AL-PERT pipes is their flexibility. The pipes can be bent without the need for additional fittings in many cases, reducing the number of joints and potential leakage points. This flexibility also allows for easier accommodation of thermal expansion and contraction, which is crucial in above - ground installations where temperature variations can be significant.



Corrosion Resistance
The PE - RT layers of the PERT-AL-PERT pipes provide excellent corrosion resistance. Unlike metal pipes, they are not susceptible to rust and corrosion, which is a major concern in above - ground installations exposed to the elements. This corrosion resistance ensures a long service life for the pipes, reducing the need for frequent replacements and maintenance.



Oxygen Barrier
The aluminum middle layer acts as an effective oxygen barrier. In heating systems, this is particularly important as it prevents oxygen from diffusing into the system, which can cause corrosion of the metal components such as radiators and boilers. By maintaining a low oxygen level in the system, the PERT-AL-PERT pipes help to extend the lifespan of the entire heating system.



Lightweight
PERT-AL-PERT pipes are relatively lightweight compared to traditional metal pipes. This makes them easier to handle during installation, reducing labor costs and the need for heavy - duty lifting equipment.



Energy Efficiency
PERT-AL-PERT pipes have excellent thermal insulation properties. In heating systems, this helps minimize heat loss during the transport of hot fluids, thereby increasing the energy efficiency of the system.



Application of PERT-AL-PERT Pipe



PERT-AL-PERT Pipe for Hot Water

Heating Systems

In heating systems, PERT-AL-PERT pipe really shines. Its ability to handle high temperatures, low oxygen permeability, and flexibility make it an ideal choice. The reduced oxygen permeability helps to prevent corrosion in the boiler and other metal components of the heating system. The flexibility allows for easy installation around obstacles and in tight spaces, which is common in floor heating systems.

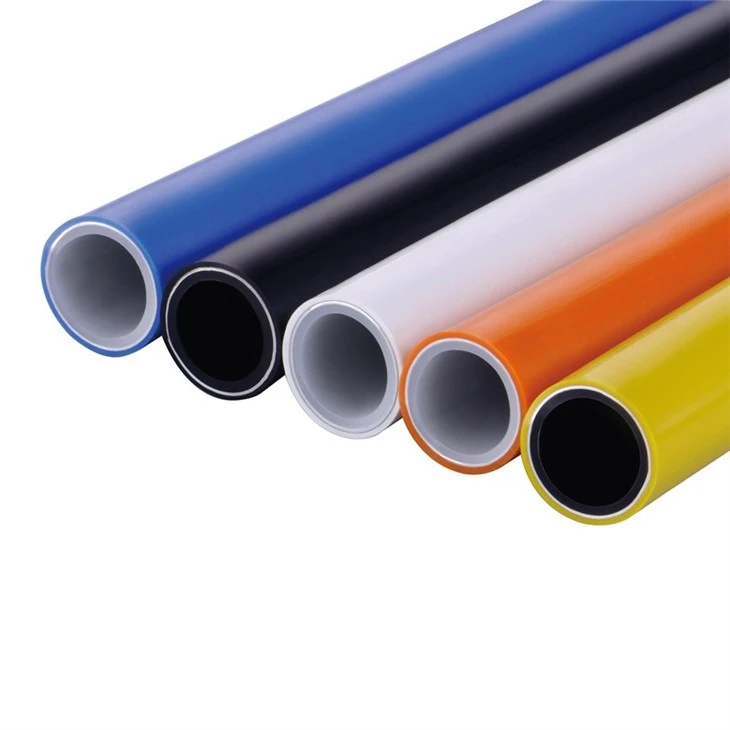

PERT-AL-PERT Composite Pipe for Underfloor Heating

Plumbing Systems

For general plumbing, PERT-AL-PERT pipe's corrosion resistance and ease of installation are big advantages. Whether it's for cold water supply or hot water distribution, it can provide a reliable and long - lasting solution. The fewer joints and fittings required also reduce the risk of leaks, which is a major concern in plumbing systems.

PERT-AL-PERT Pipe for Hot Water

Industrial Applications

In industrial settings, where pipes may be exposed to various chemicals and high - pressure conditions, PERT-AL-PERT pipe's durability and chemical resistance come in handy. It can withstand the rigors of industrial environments and provide a stable and efficient fluid transportation solution.





PERT-AL-PERT



Components of PERT-AL-PERT Pipe
PERT Layers (Inner and Outer): These are made of a special type of polyethylene (PERT) that offers good flexibility, resistance to high temperatures, and corrosion resistance. The inner layer is in contact with the fluid, while the outer layer provides protection and acts as a barrier.



Aluminum Core: This layer acts as an oxygen barrier, preventing oxygen diffusion into the system, which can cause corrosion of metallic components. It also provides stability, shape retention, and reduces thermal expansion.



Adhesive Layers: These layers ensure a strong bond between the PERT and aluminum layers, preventing delamination and maintaining the pipe's structural integrity.



productcate-1-1



FAQ



Q: lt is possible to get samples from your factory?

A: Yes.free samples will be sent if needed but the freight can be negotiated or chargeable it will be refunded after confirmation of the order.

Q: How long is the delivery time?

A: According to your order quantity, normally, 10-15 days after deposit received.

Q: What is your payments?

A: T/T,30% deposite and 70% balance should be made before shippment.

Q: What is your packing?

A: Usually plastic bags,carton,can be packed as your require.

Q: Is PERT-AL-PERT pipe suitable for potable water?

A: Yes, PERT-AL-PERT pipes are suitable for potable water systems because they are non-toxic and do not contaminate drinking water.

Q: How is PERT-AL-PERT pipe manufactured?

A: The pipe is made through a multilayer co-extrusion process using polyethylene resin designed for high-temperature resistance. The aluminum layer is typically butt-welded to create an oxygen barrier.

Q: What are the limitations of PERT-AL-PERT pipe?

A: While suitable for certain applications, PERT-AL-PERT pipe may be less durable than PEX pipe in high-temperature settings. It can risk icing expansion and rupture in cold areas. Some sources indicate PEX has better temperature and pressure ratings and a lower thermal expansion coefficient than PERT.

Q: How does PERT-AL-PERT pipe compare to PEX pipe?

A: Both are flexible plastic pipes used similarly, but differ in composition and properties. PERT is polyethylene of raised temperature resistance, while PEX is cross-linked polyethylene. PERT is generally more flexible and cost-effective, while PEX might offer more durability and better temperature/pressure ratings. PERT-AL-PERT's aluminum layer provides a better oxygen barrier than PEX. Unlike PEX-a kinks which can be fixed with heat, PERT kinks require a coupling.

Q: What is the lifespan of PERT pipes?

A: PERT pipes have a long lifespan. They can last up to 50 years if installed properly and under the right conditions.

Q: Can PERT pipes be repaired if they develop leaks?

A: Yes, PERT pipes can be repaired using a coupling or a clamp to cover the leaking area. However, it is important to note that leaks are rare with PERT pipes since they have a strong and durable connection when fitted.

As one of the leading pert-al-pert pipe manufacturers and suppliers in China, we warmly welcome you to wholesale cheap pert-al-pert pipe made in China here from our factory. All our products are with high quality and low price. Contact us for pricelist.
