PPR Pipe
Why Choose Us
Timely delivery
We understand the importance of meeting deadlines and ensuring timely delivery of our products. With our efficient logistics network, we can deliver your order promptly, no matter the size or location.
Our Service
we focus on understanding each client's unique needs and offer customized solutions to ensure satisfaction from all clients.
Wide Range of Applications
Our products are widely used in the fields of Residential and commercial water supply, Underfloor heating system, Natural gas transmission, Compressed air lines, etc.
Cutting-edge technology
We constantly invest in the latest technology and machinery to ensure that our manufacturing process is efficient and precise. By staying up-to-date with advancements in the industry, we can deliver pipes that meet the highest standards of quality and performance.

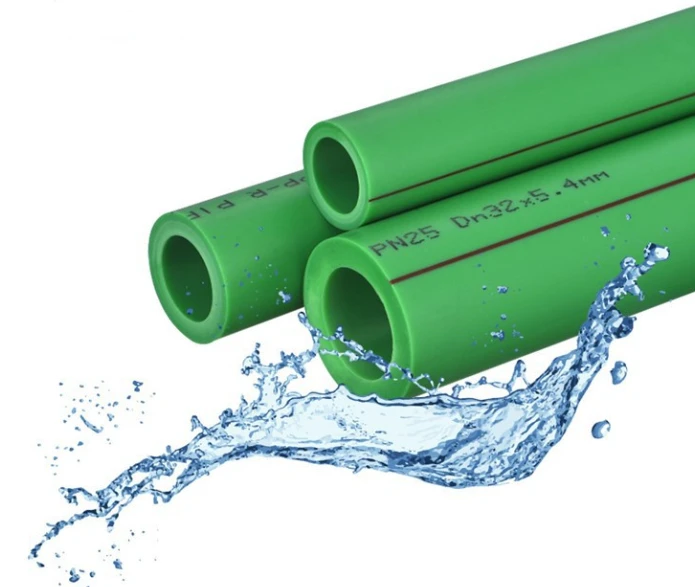

What is PPR Pipe？
PPR pipes (Polypropylene Random Copolymer pipes) are a type of plastic pipe made from a blend of polypropylene and ethylene copolymers. PPR is a high-technology plastic pipe, which is modern plumbing’s important solution when matched to cold galvanized pipes for all hot water systems. PPR Pipe and fittings are made with high-grade raw materials. It is one of the essential plastic pipe products which are used for extreme tempratures ranging from -20°C to 95°C. Mostly these pipes are green or white in color.These Pipes are made with a variety of fittings, accessories, and replacement components and each pipe diameter has its own set of attachments.
-
![PPR Fiber Composite Pipe]()
PPR Fiber Composite PipeSpecification：DN20mm-63mm temperature scope：from -10 to 75 degree Color：Greed, Gray,White and customized colors Lifespan: More than 50 yearsread more -
![NANO ANTI-Bacterium PPR Pipe]()
NANO ANTI-Bacterium PPR PipeSpecification：DN20mm-110mm temperature scope：from -10 to 75 degree Color：Greed, Gray,White and customized colors Lifespan: More than 50 yearsread more -

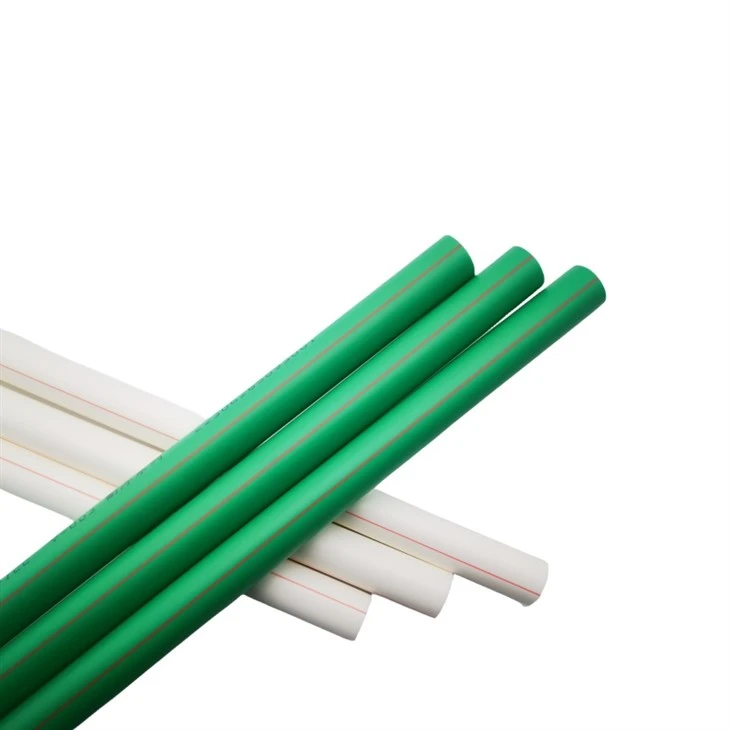

![PPR Water Pipe]()
PPR Water PipeSpecification：DN20mm-110mm temperature scope：from -10 to 75 degree Color：Greed, Gray,White and customized colors Lifespan: More than 50 yearsread more -
![PPR Hot Water Pipe]()
PPR Hot Water PipeSpecification：DN20mm-110mm temperature scope：from -10 to 75 degree Color：Greed, Gray,White and customized colors Lifespan: More than 50 yearsread more -

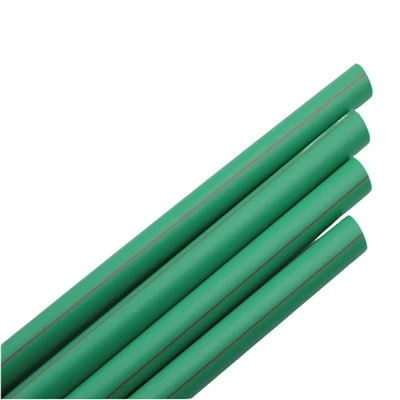

![Green PPR Pipe]()
Green PPR PipeSpecification：DN20mm-110mm temperature scope：from -10 to 75 degree Color：Greed, Gray,White and customized colors Lifespan: More than 50 yearsread more -
![Plastic PPR Tube]()
Plastic PPR TubeSpecification：DN20mm-110mm temperature scope：from -10 to 75 degree Color：Greed, Gray,White and customized colors Lifespan: More than 50 yearsread more
PPR Pipe Advantages
Resistant to Heat and Cold
One of the reasons why PPR pipes are popular is that they are resistant to heat and cold. When you use PPR pipes, you are assured of easy installations during the cold season. Also, PPR pipes are heat resistant, thanks to their low thermal conductivity. Above all, PPR pipes can withstand the strain and pressure of hot water steam.
Non-Toxic
PPR pipes are known to be safe since it does not carry any toxic materials. Therefore, it is the best pipe to use when supplying purified water since it does not cause any pollution. What is more, the PPR pipes are suitable for the human body and the environment.
Long-Lasting
When you use the PPR pipes, you will not need to think about purchasing any pipes anytime soon. The PPR pipes can withstand cold and hot temperatures and will not crack as the water is transported. You will also not have to worry about your pipes leaking.
Abrasion Resistance
Hard particles cause abrasion in pipes. However, when you use the PPR pipes, you will not need to worry about replacement since the hard particles do not damage the PPR pipes. The time taken to install the PPR pipes is also minimal. Moreover, it is resistant to electrolysis.
Environmentally Friendly
PPR pipes are made from a material that is recyclable, which means that they can be reused or repurposed at the end of their useful life. This makes them a more environmentally friendly option than other types of piping systems.
Hygienic
PPR pipes are made from a material that is resistant to bacteria and other microorganisms. This means that they are more hygienic than other types of piping systems, and they are less likely to harbor harmful bacteria.
Cost-Effective
PPR pipes are generally more cost-effective than other types of piping systems. They are cheaper to produce, and they require less maintenance over time, which can lead to significant cost savings over the long term.
Easy to Install
PPR pipes are lightweight and easy to install, which means that they can be installed quickly and with minimal effort. They are also available in a range of sizes and lengths, which makes them suitable for a wide range of applications.
Features Of Ppr Pipes
Low Thermal Conductivity
PPR pipes have low thermal conductivity as the external temperatures don’t reach the liquid inside the pipe. Due to this, these pipes minimize heat loss or heat gain during the transfer of cold and hot fluids.
Long Lasting
PPR pipes have a long lifespan of up to 50 years or more under varying and extreme environmental conditions, making them a cost-effective option in the long term.
High-temperature resistance
PPR pipes can withstand high temperatures up to 95°C, making them suitable for use in hot water supply systems.
Environment and Economic Efficiency
PPR pipes are easy to transport, cut and join. These pipes are also easy to use and do not need additional chemicals and materials.
Corrosion-resistant
PPR pipes resist corrosion from acidic or alkaline substances, making them a good choice for water supply systems.
Easy to install
PPR pipes are lightweight and thus easy to install, which may help reduce our installation time and costs.
Hot and Cold Water Supply Systems
PPR pipes are widely and equally used for hot and cold water supply systems in residential, commercial, and industrial buildings. They can withstand high temperatures and pressure and can distribute heat evenly which makes them ideal for transporting water in such systems. They are also used in heating systems such as under-floor heating etc.
Infrastructure
PPR pipes are also used in infrastructure projects like sewage systems, drainage systems, and cable conduits. These pipes' resistance to corrosion and abrasion makes them ideal for such applications.
Chemical and Fluid Transport
As we know that PPR pipes are resistant to corrosion which makes them most suitable for transporting chemicals and fluids in industrial processes.
Agricultural Irrigation Application
PPR pipes are extensively used for irrigation systems in the agriculture sector due to their durability and resistance to chemicals.
Transporting Fluids and Chemicals
PPR pipes are used in transporting fluids and chemicals in industrial processes.Summarily, it can be concluded that these pipes are a versatile and durable option for a wide range of piping applications.
Types And Uses Of PPR Pipe Fittings
PPR pipe fittings, that is, pipe fittings of polypropylene insulated pipe material, are a pipe connection element widely used in construction and industrial fields. Made of polypropylene insulation, they offer superior performance and come in a variety of types to suit different uses. Here are some common types of PPR fittings and their uses:
PPR elbow: PPR elbow is usually used to change the direction of the pipe to adapt it to different pipe layouts. They can be used in water supply and heating systems to ensure that pipes can smoothly go around obstacles or connect to different equipment.
PPR equal diameter tee: PPR equal diameter tee is used to divert pipeline flow and is usually used when branch pipes need to be connected to the main pipe. This helps maintain balance and proper functioning of the system.
PPR reducing tee: PPR reducing tee allows the connection of pipes of different diameters and is usually used to connect smaller pipes with larger pipes to meet the flow requirements of different parts.
PPR pipe caps: PPR pipe caps are used to seal the ends of pipes to prevent water leakage or dust from entering the duct system. They can also be used for manhole covers.
PPR pipe joint: PPR pipe joint is used to connect two pipes. They are available in different types including straight connectors, female connectors and male connectors, which can be selected according to specific needs.
PPR pipe gaskets: PPR pipe gaskets are often used to ensure that pipe connections are tight and prevent water leakage. They are placed at the joint when joining two pipes, providing extra sealing.
PPR Pressure Reducing Valve: PPR pressure reducing valves are used in piping systems to help maintain proper water pressure. This is essential for pressure management in water and heating systems.
PPR valve: PPR valve is used to control the flow of flowing media. They can be divided into different types such as ball valves, gate valves, butterfly valves, etc. and are suitable for different applications such as closing, regulating or diverting.
PPR quick connector: PPR quick connector is a convenient and fast way to connect pipelines, usually used in situations where frequent disassembly and replacement of pipeline components is required.
PPR pipe supports: PPR pipe supports are used to support and secure pipes, ensuring they remain stable during installation and use. This is especially important for large piping systems.
PPR filter: PPR filter is used to prevent impurities and particles from entering the pipeline system and keep the flowing medium clean. This is essential for the proper functioning of water and heating systems.
PPR pipe clamps: PPR pipe clamps are used to connect pipes to walls or other supporting structures, ensuring that the pipes are securely installed in the desired location.
How To Join PPR Pipes
Joining PPR pipes is a straightforward process that requires careful attention to ensure a proper connection. Here is a step-by-step guide for joining PPR pipes:
Prepare the Fittings
Clean the inside of the PPR fittings using a cleaning brush or sandpaper to remove any dirt or debris. Ensure that the fittings are dry before proceeding.
Heat the Pipes and Fittings
Use a PPR welding machine to heat both the pipes and fittings. The machine should be set to the appropriate temperature for the specific PPR material being used.
Hold and Cool
Hold the pipes and fittings together for a few seconds to allow them to cool and solidify. This will ensure a strong and secure connection.
Prepare the Pipes
Cut the PPR pipes to the desired length using a pipe cutter or saw. Ensure that the ends are clean and free from debris.
Insert the Pipes
Insert the heated pipes into the corresponding fittings while the material is still hot. Apply slight pressure to ensure a tight fit.
Repeat the Process
Repeat the process for each joint, ensuring that all connections are properly heated and secured.
The material of PPR (Polypropylene Random Copolymer) pipe is highly preferred in various applications due to its excellent properties. Here are some key points about the material of PPR pipe:
Durability: PPR pipe is known for its high durability, making it suitable for both indoor and outdoor applications. It can withstand high pressure and temperature variations without any deformation or leakage.
Chemical Resistance: PPR pipe exhibits excellent resistance to a wide range of chemicals, including acids, alkalis, and solvents. This property makes it suitable for various industrial applications where chemical resistance is required.
Thermal Insulation: PPR pipe has low thermal conductivity, which helps in maintaining the temperature of the fluid being transported. It reduces heat loss during hot water supply, improving energy efficiency.
Hygienic: PPR pipe is a safe and hygienic choice for carrying potable water. It is non-toxic and does not impart any odor or taste to the water. It is also resistant to bacterial growth, ensuring clean and safe water supply.
Easy Installation: PPR pipe is lightweight and flexible, making it easy to handle and install. It can be easily cut and joined using heat fusion welding, eliminating the need for additional fittings and connectors.
Longevity: PPR pipe has a lifespan of more than 50 years, making it a long-lasting solution for plumbing and other applications. Its resistance to corrosion and scaling ensures its durability over time.
Noise Reduction: PPR pipe has excellent sound insulation properties, reducing the noise generated by flowing water. This makes it ideal for residential and commercial buildings where noise reduction is desired.
Recyclability: PPR pipe is environmentally friendly as it is recyclable. At the end of its lifespan, it can be recycled to produce new PPR products, reducing waste and promoting sustainability.
Cost-Effective: Despite its numerous advantages, PPR pipe is cost-effective compared to other materials like copper or PVC. Its long lifespan and low maintenance requirements make it a cost-efficient choice.
Versatility: PPR pipe is available in various sizes and dimensions, catering to different application requirements. It can be used for hot and cold water supply, as well as for heating systems, compressed air, and industrial applications.
What is the maximum operating temperature for PPR pipes?
PPR pipes, known as polypropylene random copolymer pipes, are widely used in plumbing and heating systems due to their excellent characteristics. One important parameter to consider when using PPR pipes is the maximum operating temperature, as exceeding this temperature may lead to pipe failure and potential damages. Below are some key points about the maximum operating temperature for PPR pipes:
PPR pipes have a relatively high maximum operating temperature compared to other plastic pipes. This temperature is determined by the material's melting point and its long-term resistance to thermal degradation.
Generally, the maximum operating temperature for PPR pipes ranges from 70 to 95 degrees Celsius (158 to 203 degrees Fahrenheit). However, the specific maximum temperature may vary depending on the manufacturer and the grade of the PPR material.
It is crucial to adhere to the manufacturer's recommendations and guidelines regarding the maximum operating temperature for PPR pipes. Different manufacturers may produce PPR pipes with varying temperature tolerances, so it is necessary to consult the manufacturer's documentation or technical data sheets for accurate information.
Exceeding the maximum operating temperature of PPR pipes can cause them to soften, deform, or even fail. This can lead to leaks, pipe bursts, or system malfunctions, resulting in water damage and potential safety hazards.
The maximum operating temperature applies to both hot water and heating systems that use PPR pipes. It is important to consider the maximum temperatures that the pipes will be exposed to during normal operation and choose the appropriate pipe size and grade accordingly.
Factors such as the duration of exposure to high temperature, pressure, and environmental conditions can also impact the maximum operating temperature of PPR pipes. It is crucial to consider all these factors to ensure the safe and reliable operation of the plumbing or heating system.
In some cases, additional insulation or heat-resistant coatings may be necessary to reduce the risk of exceeding the maximum operating temperature for PPR pipes. This is particularly important in applications where the pipes come into direct contact with high-temperature heat sources, such as pipes used near boilers or in radiant heating systems.
Can Ppr Pipes Be Used For Underground Installations?
Compatibility with Soil Types:
PPR pipes are suitable for most soil types and can withstand the pressure and erosion typically found underground.
Chemical Resistance:
PPR pipes are resistant to many chemicals commonly present in soils, making them suitable for long-term underground use.
Durability:
PPR pipes are known for their high durability and can withstand harsh conditions, including temperature fluctuations and mechanical stress.
Corrosion Resistance:
Unlike metal pipes, PPR pipes do not corrode, which makes them an excellent choice for underground installations where pipe longevity is important.
Installation Considerations:
PPR pipes are lightweight and easy to install, which can make underground installation more efficient and cost-effective.
Leakage Protection:
Properly installed PPR pipes offer reliable protection against leaks, which is crucial for underground installations.
Temperature Limitations:
While PPR pipes are generally suitable for underground use, it's important to consider the maximum and minimum temperature limits of the material to ensure safe and efficient performance.
UV Stability:
PPR pipes are designed to withstand UV exposure, which is important for underground installations where pipes can be exposed to sunlight during installation or repair processes.
Expansion and Contraction:
PPR pipes are flexible enough to accommodate the natural expansion and contraction that occurs with temperature changes and ground movement.
Permeability:
PPR pipes are less permeable than other materials, which helps prevent the intrusion of contaminants and ensures the integrity of the piping system.
PPR pipes can last for a long time—up to several decades.
They don't corrode, which helps extend their lifespan.
PPR pipes are resistant to impacts and have good impact resistance.
These pipes are designed to withstand temperature fluctuations.
Regular maintenance and inspections can help prolong their lifespan.
The actual lifespan can vary based on environmental factors and usage.
When properly maintained and installed, PPR pipes can last 50 years or more.
The lifespan can be affected by the quality of the pipes and the installation practices.
Proper installation and regular maintenance are crucial for the pipes' longevity.
The lifespan also depends on the specific conditions in which the pipes are used.
Our Factory
We deliver at mass volumes thanks to the efficiency of more than 100 employees working on 12 pipe production lines (4 lines for PPR pipe, 3 lines for Overlapped Ultrasonice welding PEX-AL-PEX pipe, 3 lines for butt-welded PEX-AL-PEX pipe and 2 lines for single-layer PEX/PERT pipe) and 100+ injection machines, forging machines and CNC machines for plastic and brass fitting. Production capacity reaches 100 containers of pipes per year and 100 tons of fittings per month.
FAQ
As one of the leading PPR pipe manufacturers and suppliers in China, we warmly welcome you to wholesale cheap PPR pipe made in China here from our factory. All our products are with high quality and low price. Contact us for pricelist.
PPR Water Pipe, PPR System, PPR Hot Water Pipe
